PSCAD 電力系統分析軟體

If you can dream it, you can simulate it.

As power systems evolve, the need for accurate, intuitive simulation tools becomes more and more important. With PSCAD™/EMTDC™ you can build, simulate, and model your systems with ease, providing limitless possibilities in power system simulation. Included is a comprehensive library of system models ranging from simple passive elements and control functions, to electric machines and other complex devices.

What is PSCAD?

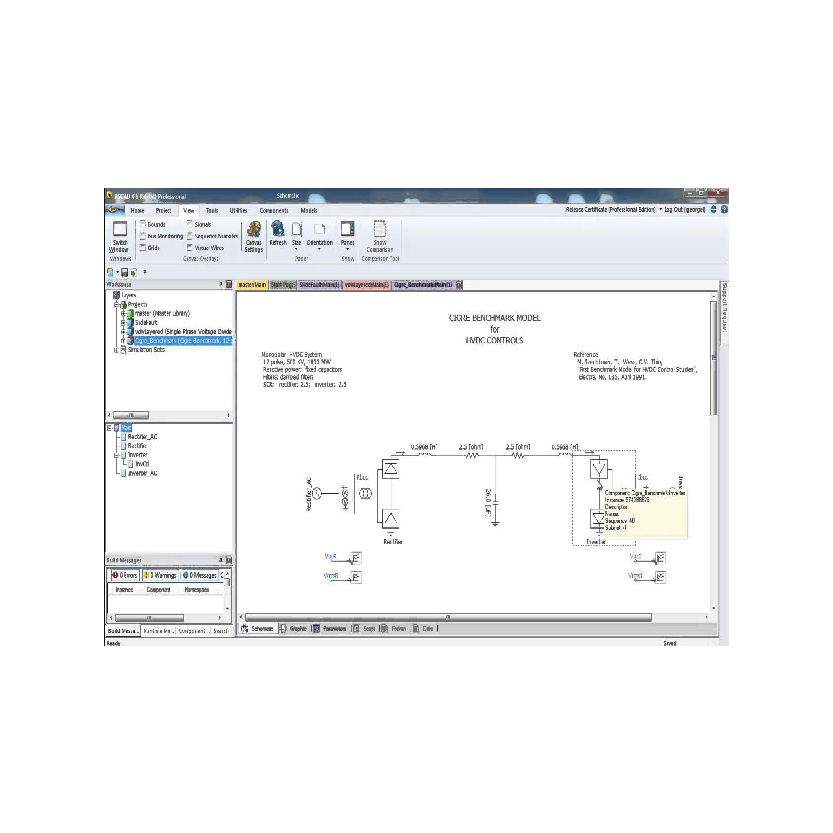

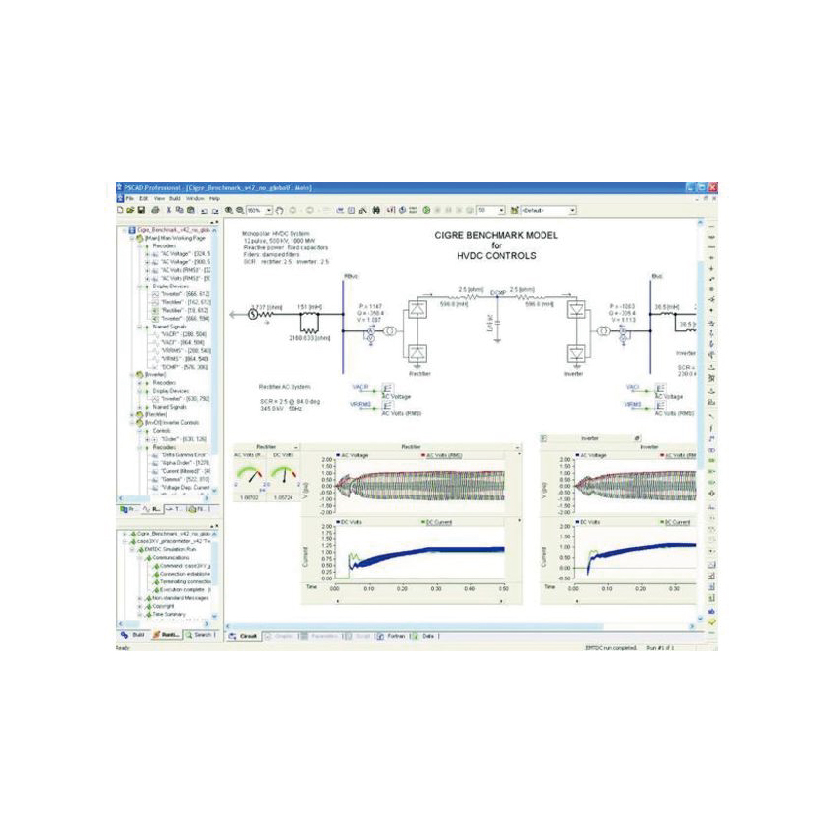

PSCAD (Power Systems Computer Aided Design) is a powerful and flexible graphical user interface to the world-renowned, EMTDC electromagnetic transient simulation engine. PSCAD enables the user to schematically construct a circuit, run a simulation, analyse the results, and manage the data in a completely integrated, graphical environment. Online plotting functions, controls and meters are also included, enabling the user to alter system parameters during a simulation run, and thereby view the effects while the simulation is in progress.
PSCAD comes complete with a library of pre-programmed and tested simulation models, ranging from simple passive elements and control functions, to more complex models, such as electric machines, full-on FACTS devices, transmission lines and cables. If a required model does not exist, PSCAD provides avenues for building custom models. For example, custom models may be constructed by piecing together existing models to form a module, or by constructing rudimentary models from scratch in a flexible design environment.
The following are some common models found in the PSCAD master library:

– Resistors, inductors, capacitors
– Mutually coupled windings, such as transformers
– Frequency dependent transmission lines and cables
– Current and voltage sources
– Switches and breakers
– Protection and relaying
– Diodes, thyristors and GTOs
– Analog and digital control functions
– AC and DC machines, exciters, governors, stabilizers and inertial models
– Meters and measuring functions
– Generic DC and AC controls
– HVDC, SVC, and other FACTS controllers
– Wind source, turbines and governors

PSCAD, and its simulation engine EMTDC, have enjoyed close to 40 years of development, inspired by ideas and suggestions by its ever strengthening, worldwide user base. This development philosophy has helped to establish PSCAD as one of the most powerful and intuitive CAD software packages available.

Who Uses PSCAD, and for What?

The PSCAD users’ spectrum includes engineers and scientists from utilities, manufacturers, consultants, as well as research, military and academic institutions. It is used in planning, operation, design, commissioning, preparing of tender specifications, teaching and research. The following are examples of the studies routinely conducted using PSCAD:

– Contingency studies of AC networks consisting of rotating machines, exciters, governors, turbines, transformers, transmission lines, cables, and loads
– Relay coordination
– Transformer saturation effects
– Insulation coordination of transformers, breakers and arrestors
– Impulse testing of transformers
– Sub-synchronous resonance (SSR) studies of networks with machines, transmission lines and HVDC systems
– Evaluation of filter design and harmonic analysis
– Control system design and coordination of FACTS and HVDC; including STATCOM, VSC, and cycloconverters
– Optimal design of controller parameters
– Investigation of new circuit and control concepts
– Lightning strikes, faults or breaker operations
– Steep front and fast front studies
– Electric naval vessel design
– Investigation of the pulsing effects of diesel engines and wind turbines on electric networks

What’s New in PSCAD X4?

PSCAD X4 is classified as a minor upgrade. The number of enhancements and features it provides however are far from minor. The following is a general overview of what is new in PSCAD X4.
Important Points of Note
PSCAD X4 represents a complete refurbishment of the internal architecture of the software. Although it appears quite similar to the previous version on the surface, under the hood it is vastly different. Due to these changes, there are a few important points of note.

– New File Formats: PSCAD X4 project file extensions have been changed to reflect the switch-over to XML-based file storage. The extensions are now *.pslx and *.pscx for library and case projects respectively. Component definition file extensions have been changed from *.cmp to *.psdx.
– Upwards Compatibility: PSCAD X4 supports the import of *.psc and *.psl file formats that have been generated by PSCAD v4.2 only. Older component definition files with extension *.cmp may be imported as well.
– Downwards Compatibility: The PSCAD X4 release is not backwards compatible. That is, X4 format project files (*.pscx and *.pslx) cannot be converted back to *.psc or *.psl format.
– 64-bit PSCAD Product: A 64-bit product is now here! A separate software product, the PSCAD 64-bit application directly addresses the ‘Out of memory’ issue that some power users have experienced when attempting to run very large simulations: If a simulation exceeds the allocated process memory of 2 GB (imposed by the Windows 32-bit operating system) then the simulation will crash, resulting in lost time. The 64-bit PSCAD will open up an enormous memory space (8 TB or 8,000 GB), but the speed of execution is not affected.
